Bulldog Professional Starter Kit, EVC325-SK0, YoLink, No Plumbing!
1/6

Bulldog Professional Starter Kit, EVC325-SK0, YoLink, No Plumbing!

SKU: EVC325-SK0
$341.00 CAD

Upgrade to Bulldog-EVC325-SK3 with 3 leak sensors
Upgrade to Bulldog-EVC325-HB-SK3 with 3 leak sensors and hub

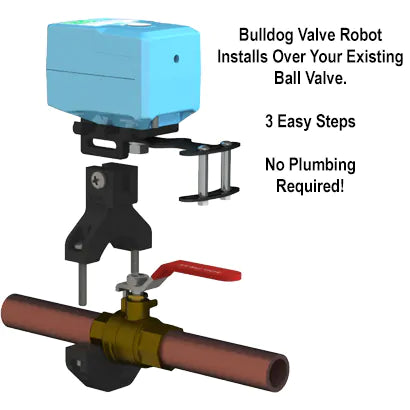

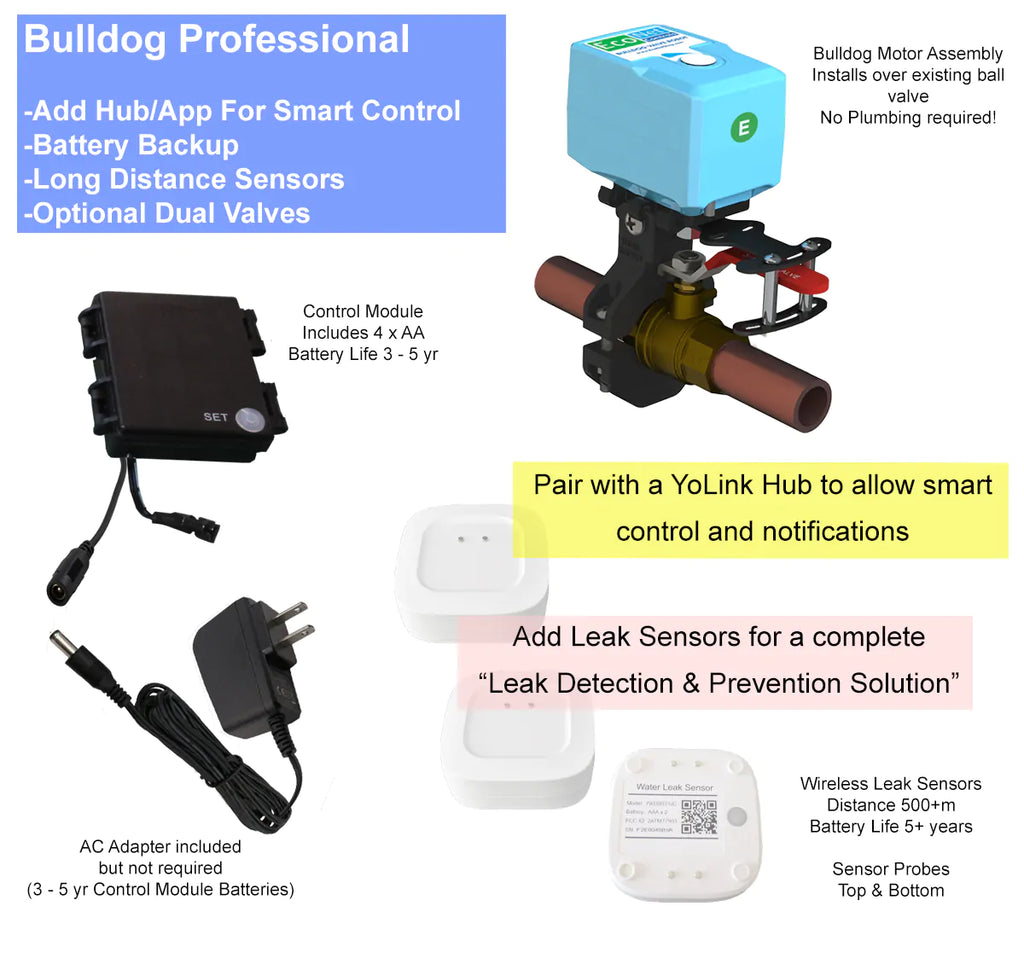

The EcoNet Controls Bulldog Professional Starter Kit is a customizable solution for customers who only want water leak detection, or only remote water shutoff/automation. By including leak sensors and Yolink Hub with your order, you can take advantage of the extended range and battery pack while directly pairing the leak sensors to the controller, saving on cost by excluding the remote control/automation features. With the smart hub, you can take advantage of the extended range and battery pack allowing remote control/automation, saving on cost by excluding the leak detection features. This valve robot is designed for easy, DIY installation, fitting over existing levered ball valves with no plumbing modifications required.

  • Automatic Water Shutoff: Prevents costly water damage by shutting off the water supply automatically when leaks are detected.
  • Supports Up to 20 Leak Sensors: Kit includes 3 leak sensors and can be expanded to protect multiple areas of your home by adding up to 20 sensors.

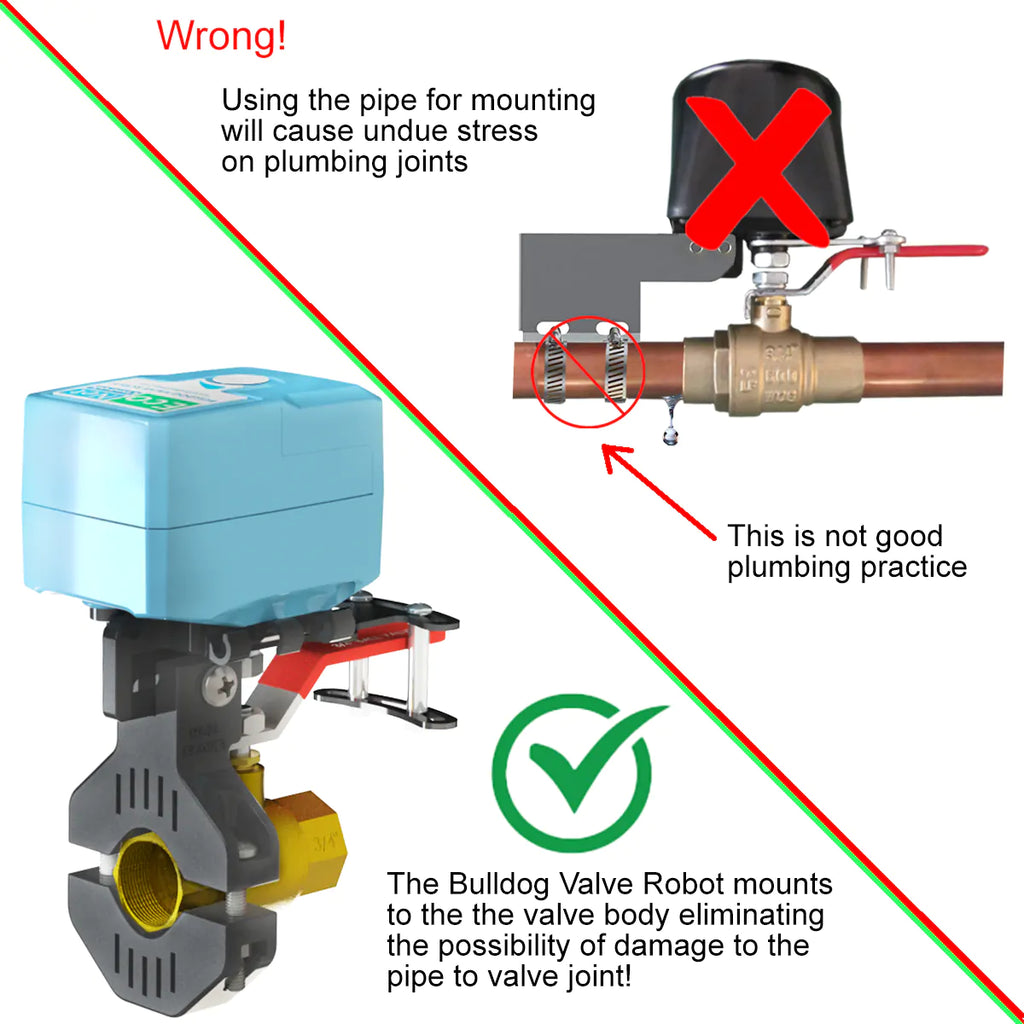

  • Easy Installation: No plumbing modifications or special tools required—fits directly over existing levered ball valves.

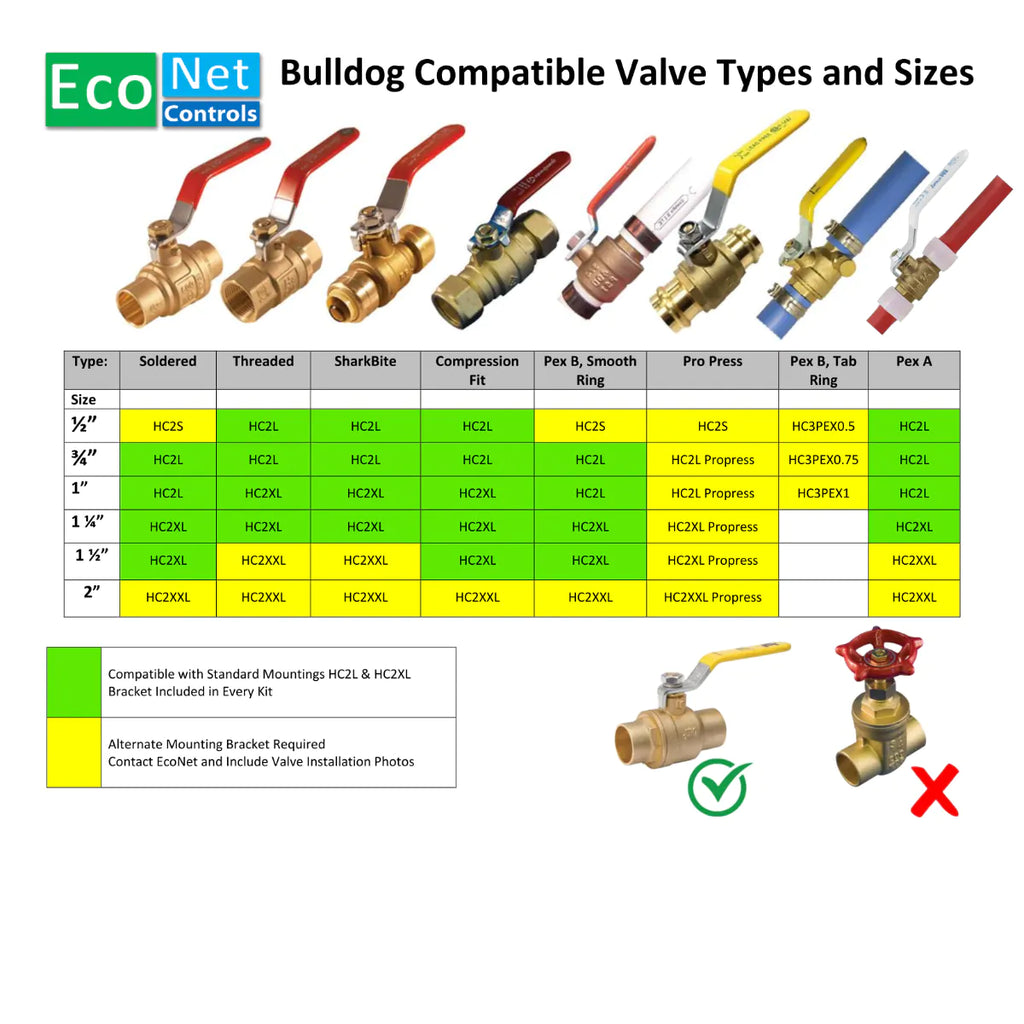

  • Wide Valve Compatibility: Works with most standard ¾", 1", 1.25", and 1.5" valves (Refer to Valve Compatibility Chart).
  • Hub Control: Will run home automations even when your internet goes down
  • Durability & Performance: High-torque motor and intelligent stroke control ensure reliable operation, even for tough installations.
  • Flexible Installation: The Professional Starter Kit installs easily without requiring any plumbing modifications. Simply place it over your existing levered ball valve, and you're ready to go. With support for most standard valve sizes, the system offers flexibility for use in different areas of your home.
  • Built-In Battery Backup: Secures your home even in the the case of a power outage to keep your Bulldog system working for up to 24 hours during with no power. (Batteries Included)

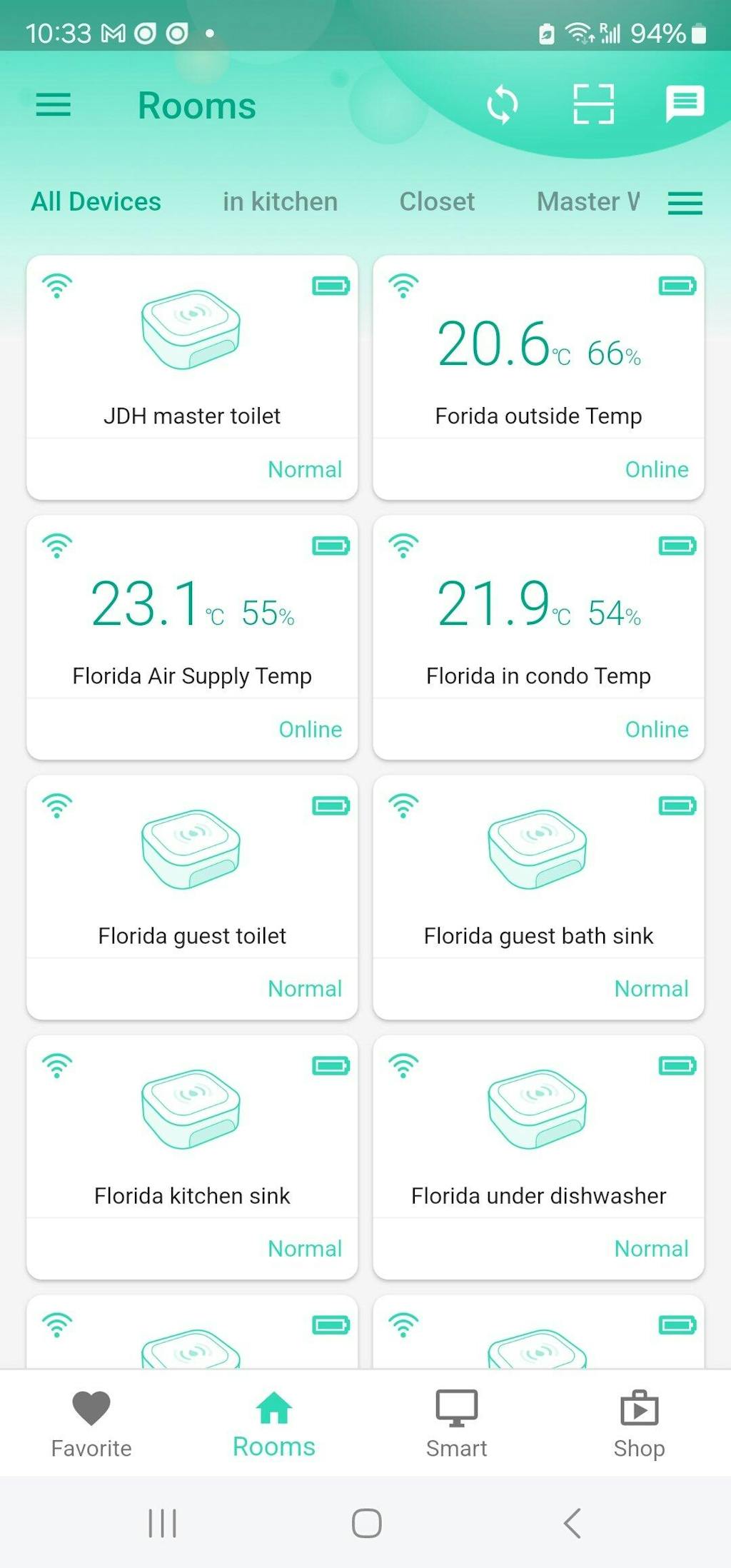

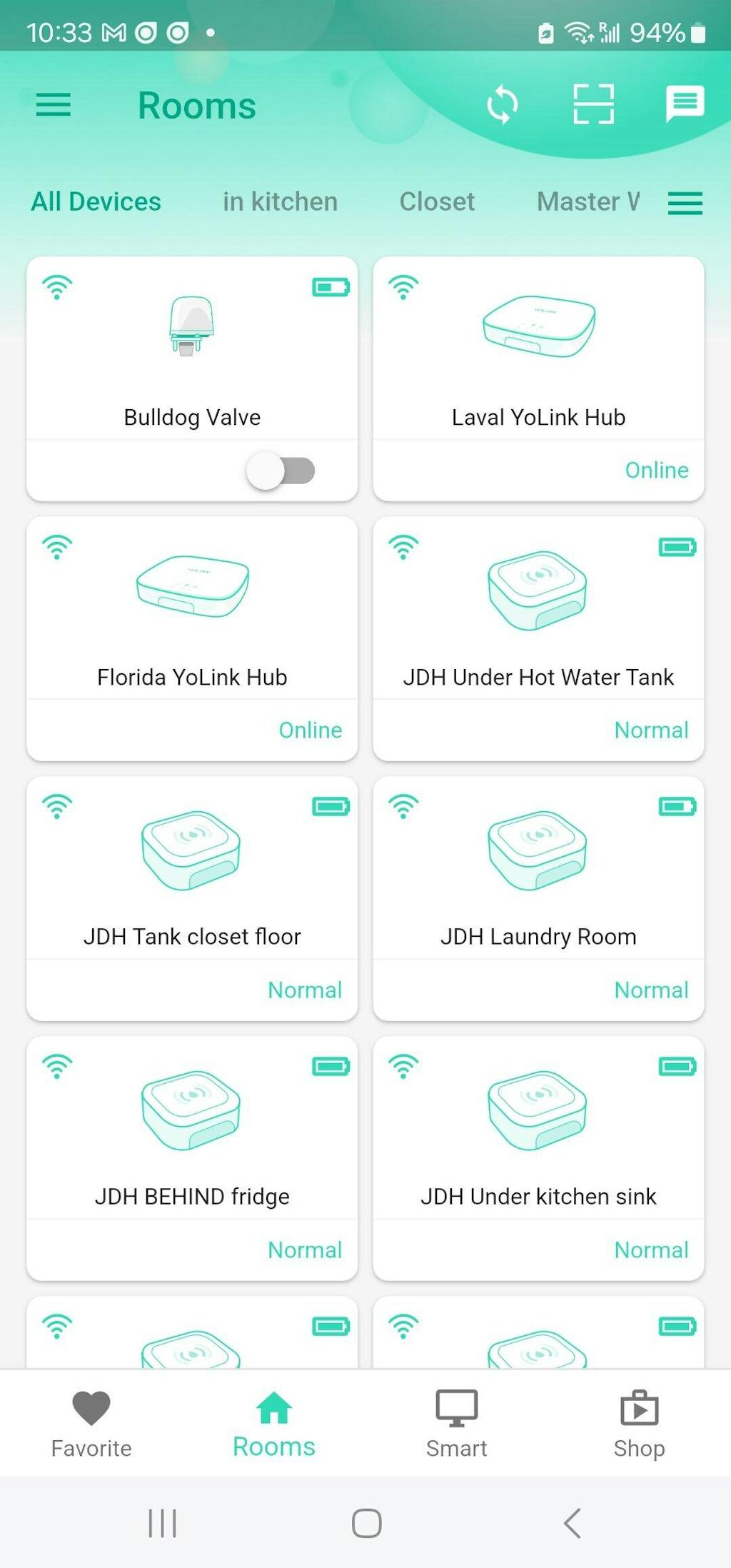

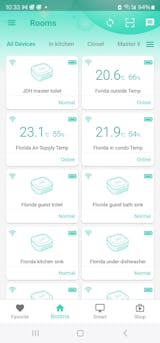

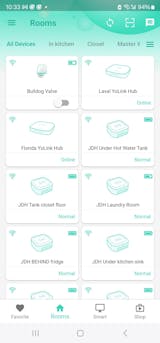

  • Superior Leak Detection: Through the YoLink app you are able to monitor battery status, as well as where leaks happen in the house, providing additional quality of life and reduced maintenence. Sensors can also be paired device to device alongside leak automations, allowing for multiple layers of security.
  • Long range: Leak sensors, Controller, and Hub all have extremely long range, making this kit ideal for larger homes

Technical Specifications

Bulldog Motor Specifications


Mechanical Specifications

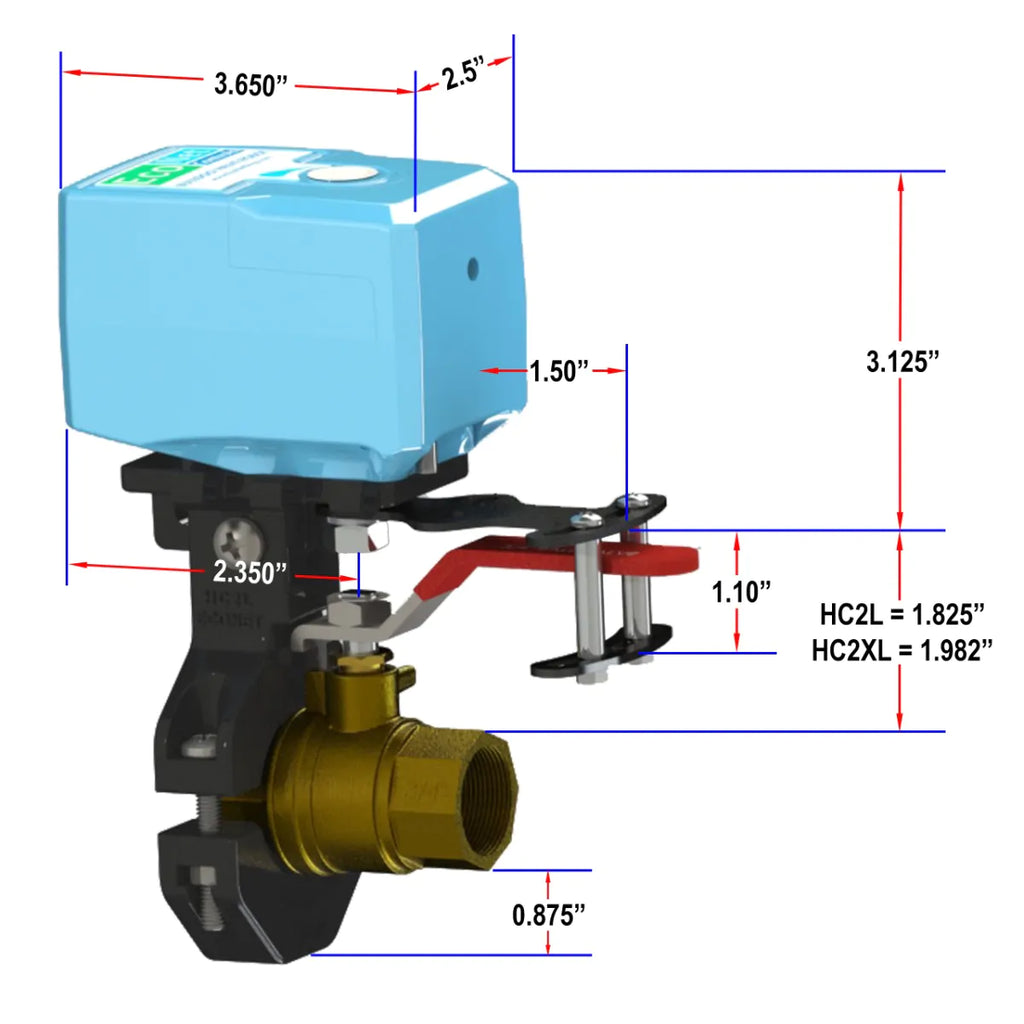

Dimensions: 3.65*2.50*2.60in   9.27*6.35*6.60cm
Torque:11lbf (~15Nm)
Materials: Plastic, Metal
Arm Material:Stainless Steel
Cable Length:~10ft(3m)
Sealing:Weather Resistant
Weight: 0.42lbs(0.19kg)
Color:Black, Blue
Max Rotational Angle:    90 degrees Clockwise
Open/Close Time~18 seconds


Electrical Specifications

Operating Voltage:
12VDC
Cable Type USB-C male to PS2 male


Mechanical Specifications

Model:  YS4909-UC
Dimensions:  3.88*2.94*1.06in   9.86*7.47*2.69cm

Mechanical Specifications

Model: YS7903-UC

Mechanical Specifications

Model:YS1603-UC
Dimensions: 4.33*4.33*1.06in   11.00*11.00*2.70cm

AC/DC Adapter Specifications


Mechanical Specifications

Model: MKC-1201000S
Dimensions: 1.87*1.55*0.90in   4.75*3.95*2.30cm
Materials: PC+ABS Fireproof
Color:Black
Cable Length:~10ft(3m)
Cable Type: DC Connector 5.5mm x 2.1mm


Electrical Specifications

Output: 12VDC
Input:Universal 100-240V 50/60Hz
Power Source: Half-Bridge Type
Protection: Over Current/Voltage/Short Circuit Protection
Certifications: CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK



Accessories

Alternate Mounting Kit

Do you have an unusual, larger, or smaller valve than normal?  Consider upgrading/adding the Alternate Mounting Kit to allow the Bulldog motor to mount on your valve. Refer to the Valve Compatibility Chart for more info, or if you are unsure of your valve size and/or type contact support@econetcontrols.com with the diameter of the connected pipe and an image of the valve you plan to install on.

Alternate Mounting Kit
